Connection Status

Overview

Zero manages a persistent connection to zero-cache with the following lifecycle:

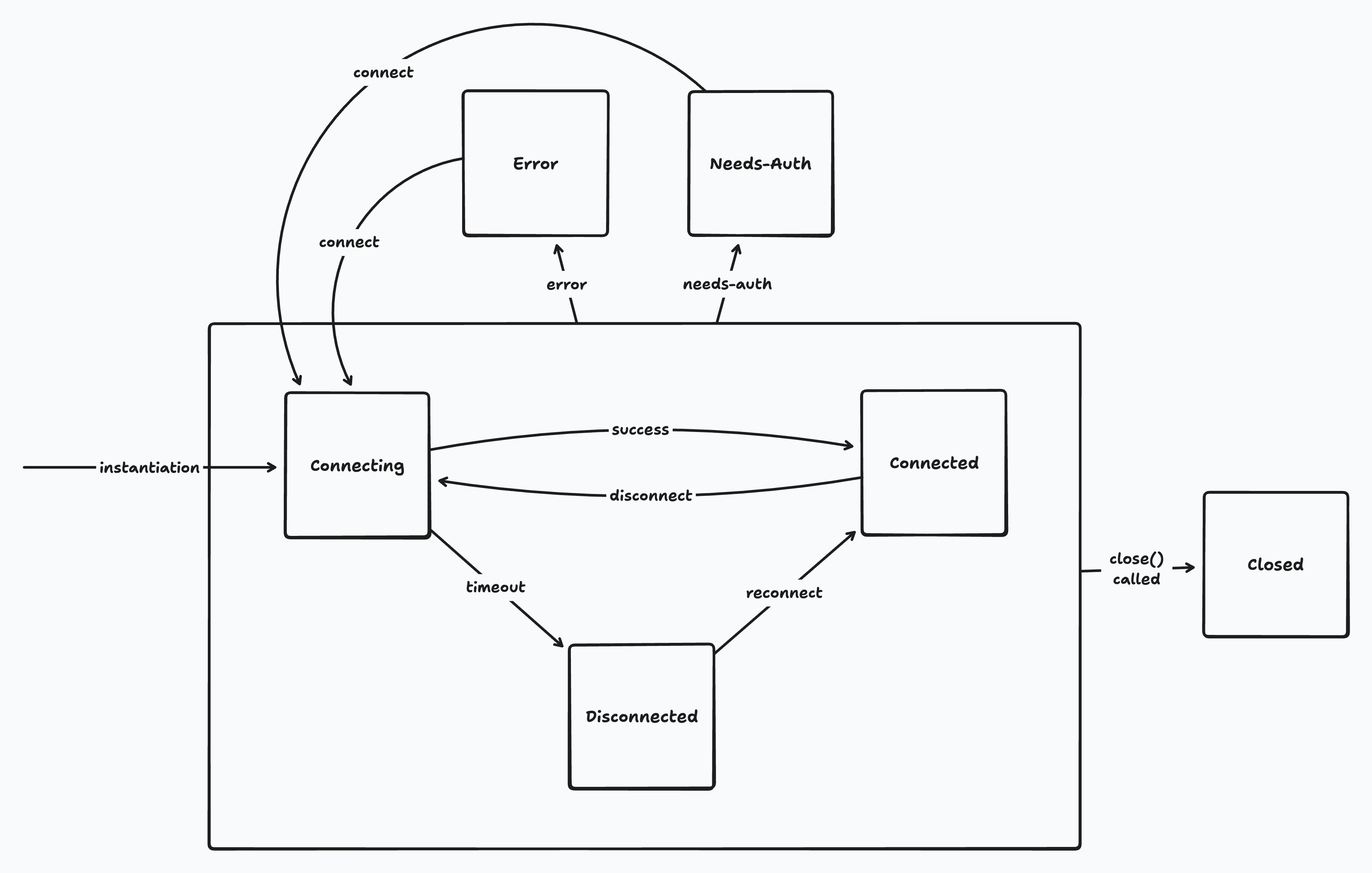

Zero's connection lifecycle

Zero's connection lifecycle

Usage

The current connection state is available in the zero.connection.state property. This is subscribable and also has reactive hooks for React and SolidJS:

import {useConnectionState} from '@rocicorp/zero/react'

function ConnectionStatus() {
  const state = useConnectionState()

  switch (state.name) {
    case 'connecting':
      return <div title={state.reason}>Connecting...</div>
    case 'connected':
      return <div>Connected</div>
    case 'disconnected':
      return <div title={state.reason}>Offline</div>
    case 'error':
      return <div title={state.reason}>Error</div>
    case 'needs-auth':
      return <div>Session expired</div>
    default:
      return null
  }
}

Details

Connecting

Zero starts in the connecting state. Once the connection is established, it transitions to connected.

While connecting, Zero repeatedly tries to connect to zero-cache for 1 minute by default. This timeout can be configured with the disconnectTimeoutMs constructor parameter:

const opts: ZeroOptions = {
  // ...
  disconnectTimeoutMs: 1000 * 60 * 10 // 10 minutes
}

Reads and writes are allowed to Zero mutators while connecting. The writes are queued and will be sent when the connection succeeds.

This is intended to paper over short connectivity glitches, such as server restarts, walking into an elevator, etc.

Disconnecting

After the disconnectTimeoutMs elapses, Zero transitions to disconnected.

While disconnected, Zero continues to try to reconnect to zero-cache every 5 seconds.

Reads are allowed while disconnected, but writes are not.

Errors

If zero-cache itself crashes, or if the mutate or query endpoints return a network or HTTP error, Zero transitions to the error state.

This type of error is unlikely to resolve just by retrying, so Zero doesn't try. The app can retry the connection manually by calling zero.connection.connect().

Auth Required

If the mutate or query endpoints return a 401 or 403 status code, Zero transitions to the needs-auth state.

The app should refresh the cookie or auth token and retry the connection manually by calling zero.connection.connect().

See Authentication for more information.

Offline Support

While in the connecting state, Zero queues writes and replays them when the connection succeeds.

This works well for short periods offline, but not long periods for several reasons.

Conflicts

Imagine two users are editing an article about cats. One goes offline and does a bunch of work on the article, while the other decides that the article should actually be about dogs and rewrites it. When the offline user reconnects, there is no way that any software algorithm can automatically resolve their conflict. One or the other of them is going to be upset.

While this example may sound extreme, you can construct similar situations with the majority of common applications.

Just take your own application and ask yourself what should really happen if one user takes their device offline for a week and makes arbitrarily complex changes while other users are working online.

If you want to build an application that supports offline writes, you have three options:

  1. Make the logical datamodel append-only (i.e., users can create and mark tasks done, but cannot edit or delete them).
  2. Support custom UX to allow users to fork and merge conflicts when they occur.
  3. Only support editing from a single device. Even a single-user application can experience conflicts as soon as there are multiple devices.

Writes Can be Lost Across Schema Changes

Typically when a write happens while offline, it is written to local storage and replayed on next connection – even across app restarts.

However, if that app restart gets a new version of Zero, or a new schema version, Zero creates a new local storage area and the offline write is effectively lost.

In Replicache, our prior sync engine on which Zero is based, this was solved with a system called "mutation recovery" that rescued these mutations from prior schema/Zero versions. This system has not yet been ported to Zero.

Startup Can be Slow When Replaying Writes

When Zero starts, it sends all queued mutations to the server and simultaneously pulls updates from the server. When the server updates are applied, any queued mutations are "rebased" (re-run locally) to resolve conflicts.

If there are many locally queued changes, this process can be slow.

To effectively support long periods offline, Zero should probably have a mode where it first sends all queued mutations, then replays them after the server updates are applied. But this would conflict with the goal to startup and get server updates fast when there aren't many queued mutations, so some work would be needed to balance these two goals.

Offline Mutations Must Never Be Rejected

When a mutator throws an error on the server, the handleMutateRequest function in @rocicorp/zero/server returns the error to the client but marks the mutation processed.

This is a good UX and DX when online because it mirrors the behavior of normal web apps.

When offline, mutations should never be rejected. Otherwise the user could lose arbitrarily large amounts of work. Mutations should be replayed until they can be accepted.

This would require a different implementation of the handleMutateRequest. Also the developer would have to be very careful to respond to any erroring mutations quickly, as those clients will be unable to save work until the error is resolved.
