Zero includes a rich inspector API that can help you understand performance or behavior issues you are seeing in your apps.

Accessing the Inspector

You access the inspector right from the standard developer console in your browser:

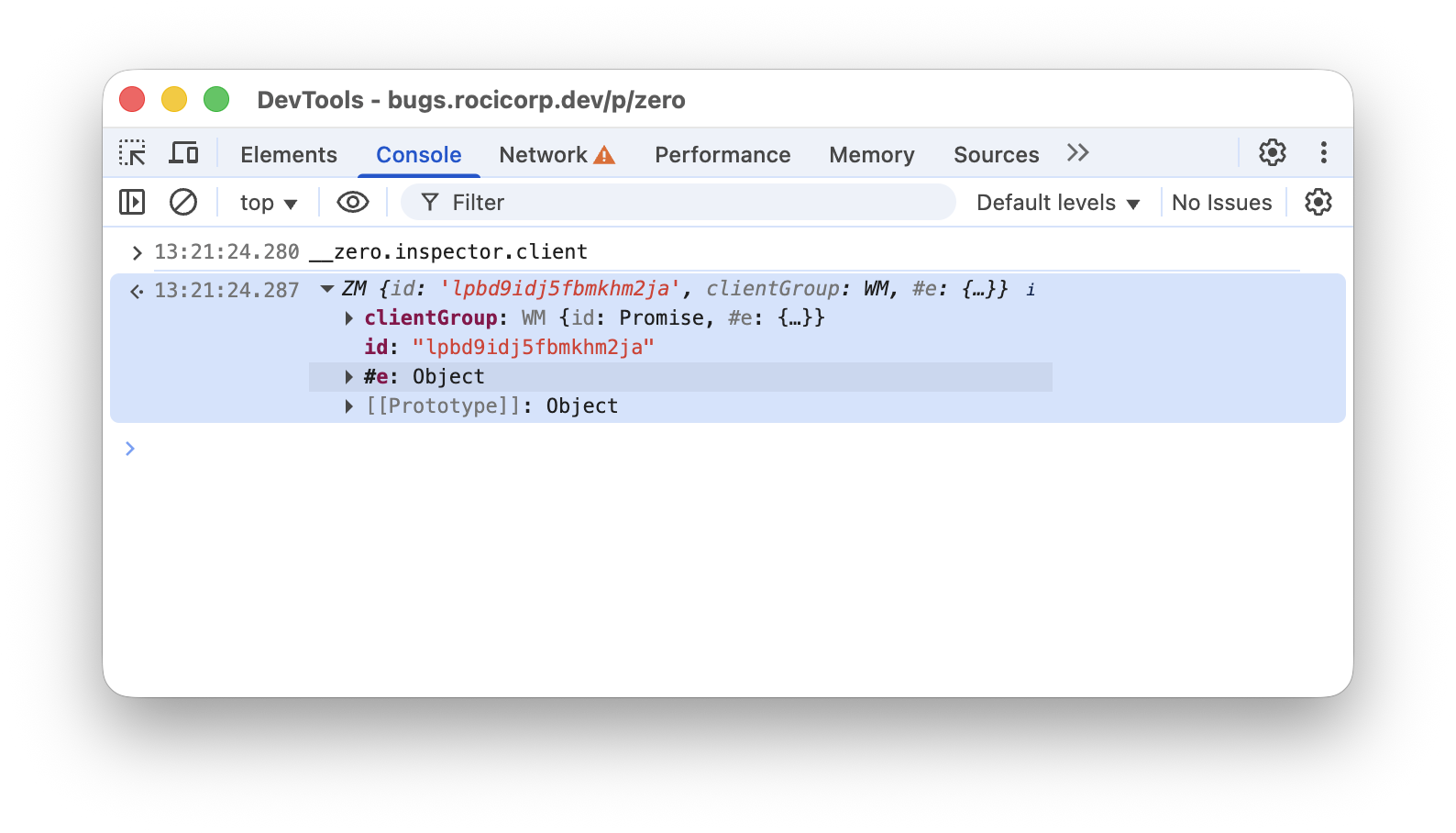

Why hello there, inspector!

For convenience, Zero automatically injects itself as __zero on the global scope of every Zero app.

Clients and Groups

Once you have an inspector, you can inspect the current client and client group. For example to see active queries for the current client:

Copylet qs = await inspector.client.queries();
console.table(qs);

To see active queries for the entire group:

Copylet qs = await inspector.client.queries();
console.table(qs);

Queries

The inspector exposes a bunch of useful information about queries. For example, to see the first query for the current client:

Copylet qs = await inspector.client.queries();
console.log(qs[0]);

This outputs something like:

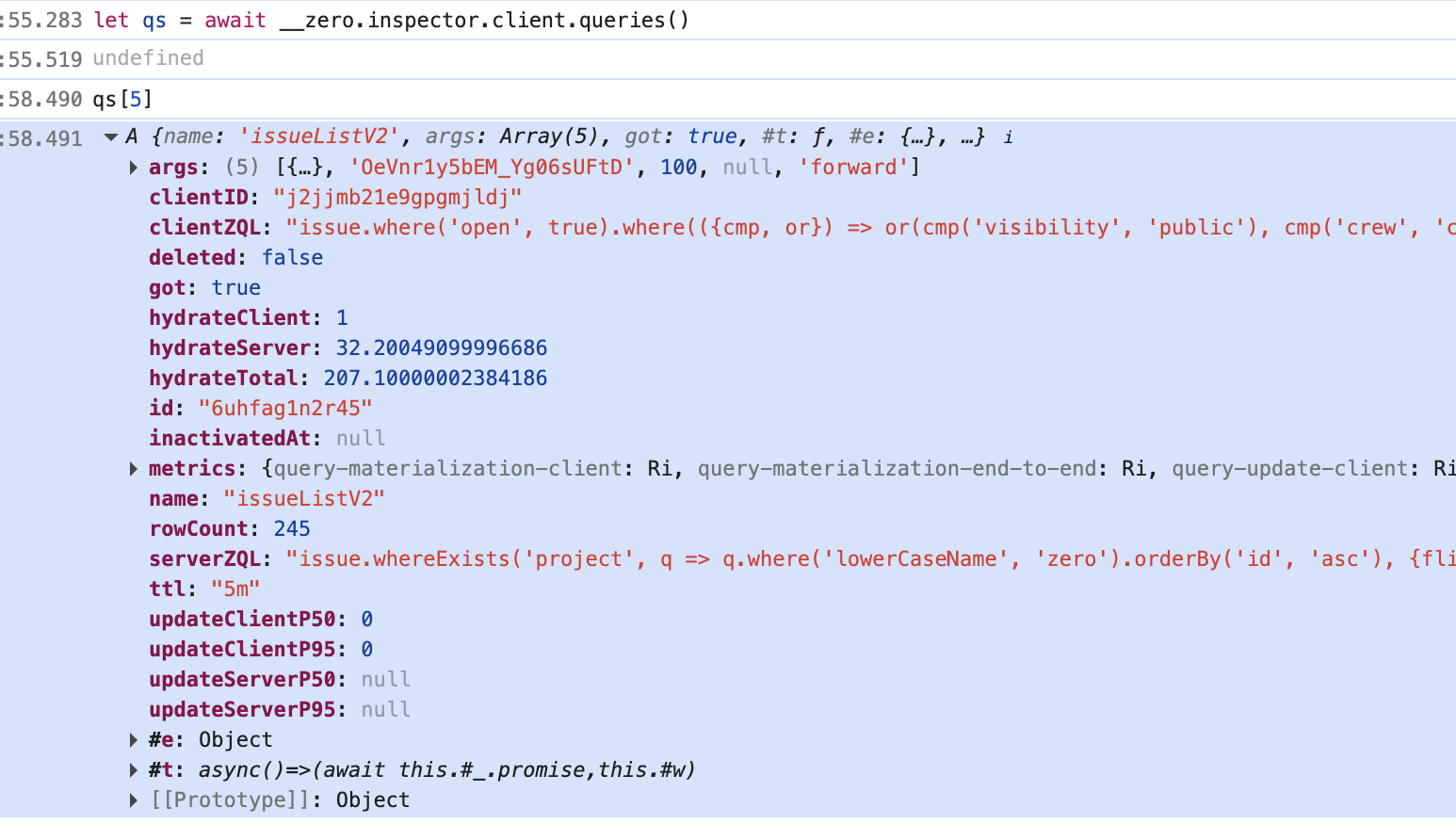

Information about a query

Here are some of the more useful fields:

Analyzing Queries

Use the analyze method to get information about how a query hydrates:

Copyawait qs[0].analyze();

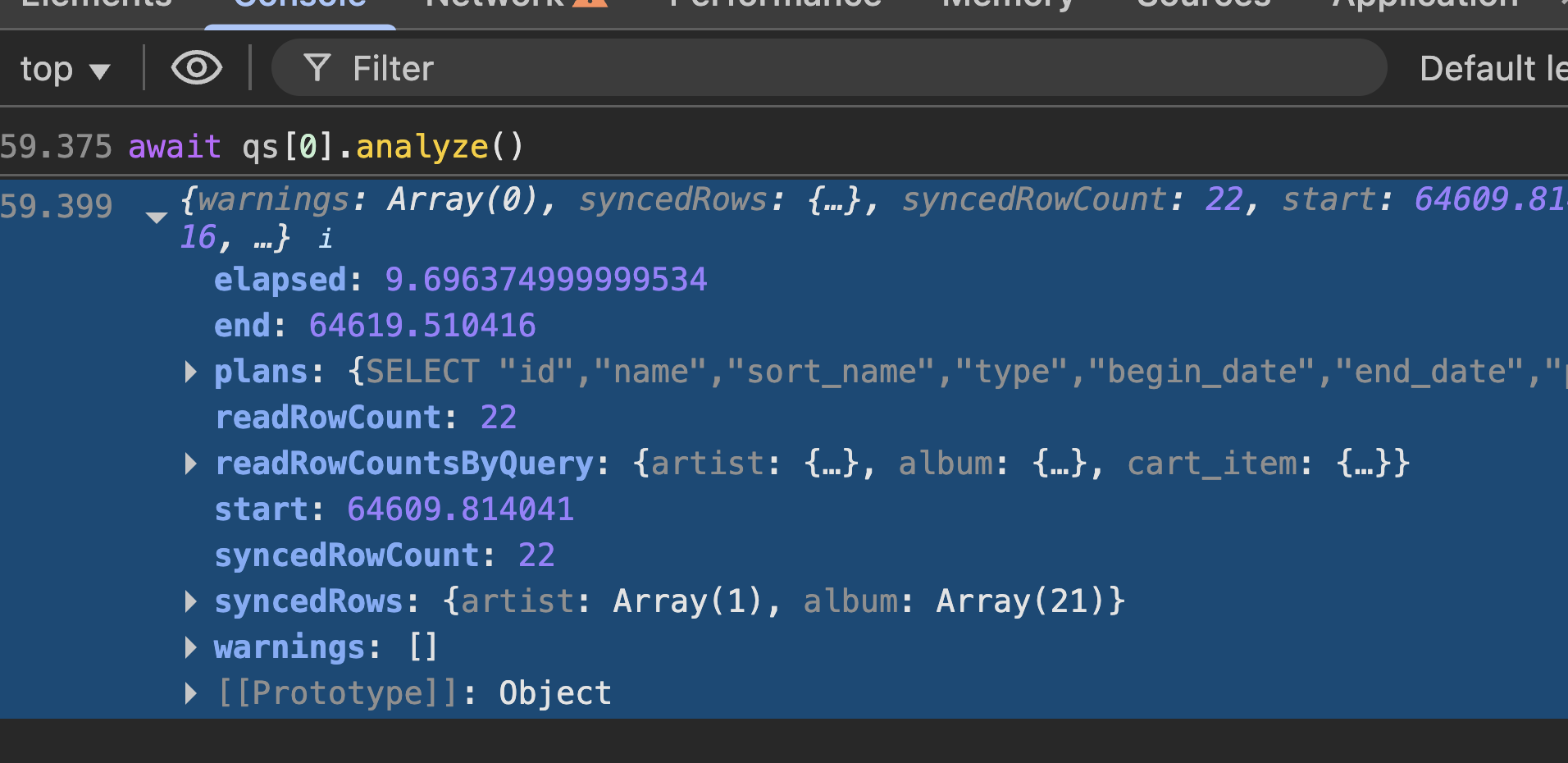

Analyzing a query

Here are some of the most useful fields in the output:

Analyzing Arbitrary ZQL

You can also analyze arbitrary ZQL, not just queries that are currently active:

Copyawait __zero.inspector.analyzeQuery(
  __builder.issues.whereExists('labels', q => q.id.equals('sync')));

This is useful for exploring alternative query constructions to optimize performance.

To use this, you will first have to expose your builder as a property of the global object, so that you can access it from the console. For example:

Copy// schema.ts
// ...
const g = globalThis as any;
g.__builder = builder;

Table Data

In addition to information about queries, you can get direct access to the contents of the client side database.

Copyconst client = __zero.inspector.client;

// All raw k/v data currently synced to client
console.log('client map:');
console.log(await client.map());

// kv table extracted into tables
// This is same info that is in z.query[tableName].run()
for (const tableName of Object.keys(__zero.schema.tables)) {
  console.log(`table ${tableName}:`);
  console.table(await client.rows(tableName));
}

Server Version

Ask the server to confirm what version it is:

Copyconsole.log('server version: ', await inspector.serverVersion());
