OpenTelemetry
The zero-cache service embeds the JavaScript OTLP Exporter and can send logs, traces, and metrics to any standard otel collector.
To enable otel, set the following environment variables then run zero-cache as normal:
OTEL_EXPORTER_OTLP_ENDPOINT="<your otel endpoint>"
OTEL_EXPORTER_OTLP_HEADERS="<auth headers from your otel collector>"
OTEL_RESOURCE_ATTRIBUTES="<resource attributes from your otel collector>"
OTEL_NODE_RESOURCE_DETECTORS="env,host,os"Grafana Cloud Walkthrough
Here are instructions to setup Grafana Cloud, but the setup for other otel collectors should be similar.
- Sign up for Grafana Cloud (Free Tier)

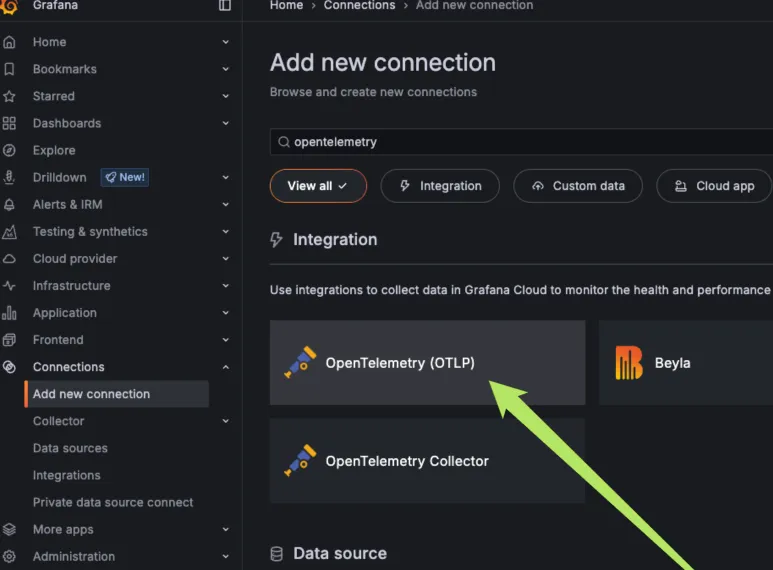

- Click Connections > Add Connection in the left sidebar
- Search for "OpenTelemetry" and select it

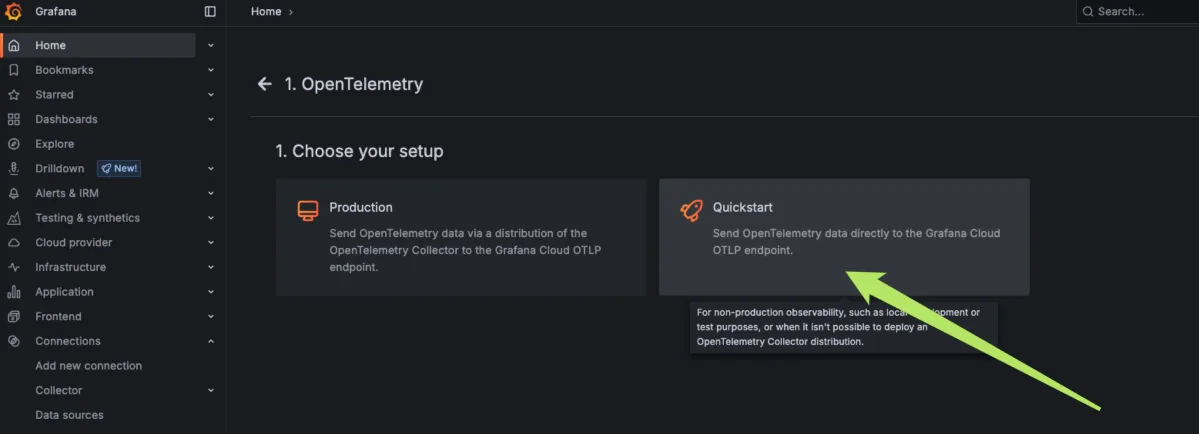

- Click "Quickstart"

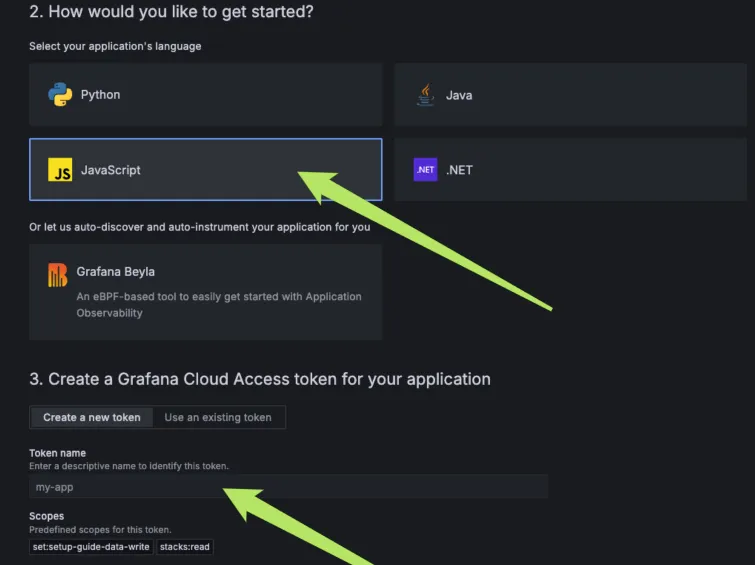

- Select "JavaScript"
- Create a new token
- Copy the environment variables into your
.envfile or similar
- Start
zero-cache - Look for logs under "Drilldown" > "Logs" in left sidebar
Distributed Tracing
You can enable end-to-end trace correlation from your frontend through zero-cache to your API server. This allows you to see the full request flow in your tracing UI.
To enable this, provide a getTraceparent callback when creating your Zero client:
import {ZeroProvider} from '@rocicorp/zero/react'
import {propagation, context} from '@opentelemetry/api'
function getTraceparent() {
const carrier: Record<string, string> = {}
propagation.inject(context.active(), carrier)
return carrier.traceparent
}
return (
<ZeroProvider
/* ... other options ... */
getTraceparent={getTraceparent}
>
<App />
</ZeroProvider>
)This callback is called before sending WebSocket messages that trigger API server calls (push, changeDesiredQueries, initConnection). The returned W3C traceparent header is forwarded through zero-cache to your API server, where it can be used to continue the trace.
Metrics Reference
zero.server
| Metric | Type | Unit | Description |
|---|---|---|---|
uptime | Gauge | s | Cumulative uptime, starting from when requests are served |
zero.replica
| Metric | Type | Unit | Description |
|---|---|---|---|
db_size | Gauge | bytes | Size of the replica's main db file (excludes WAL) |
wal_size | Gauge | bytes | Size of the replica's WAL file |
wal2_size | Gauge | bytes | Size of the replica's WAL2 file (only if using wal2 mode) |
backup_lag | Gauge | ms | Time since last litestream backup. Expected to sawtooth from 0 to ZERO_LITESTREAM_INCREMENTAL_BACKUP_INTERVAL_MINUTES |
zero.replication
| Metric | Type | Unit | Description |
|---|---|---|---|
upstream_lag | Gauge | ms | Latency from sending a replication report to receiving it in the stream |
replica_lag | Gauge | ms | Latency from receiving a replication report to it reaching the replica |
total_lag | Gauge | ms | End-to-end replication latency. Grows as an estimate if the next report hasn't arrived |
events | Counter | Number of replication events processed | |
transactions | Counter | Count of replicated transactions |
zero.sync
| Metric | Type | Unit | Description |
|---|---|---|---|
max-protocol-version | Gauge | Highest sync protocol version seen from connecting clients | |
active-clients | UpDownCounter | Number of currently connected sync clients | |
active-client-groups | Gauge | Number of active ViewSyncerService instances in a syncer worker | |
queries | Gauge | Active IVM pipelines across all client groups in a syncer worker | |
rows | Gauge | CVR-tracked rows across all client groups in a syncer worker | |
lock-wait-time | Histogram | s | Time spent waiting to acquire the ViewSyncerService lock per operation |
pipeline-resets | Counter | Count of pipeline resets. Has a reason attribute: advancement-timeout, scalar-subquery, schema-change, truncation, permissions-change | |
hydration | Counter | Number of query hydrations | |
hydration-time | Histogram | s | Time to hydrate a query |
advance-time | Histogram | s | Time to advance all queries for a client group after applying a transaction |
poke.time | Histogram | s | Time per poke transaction (excludes canceled/noop pokes) |
poke.transactions | Counter | Count of poke transactions | |
poke.rows | Counter | Count of poked rows | |
cvr.flush-time | Histogram | s | Time to flush a CVR transaction |
cvr.rows-flushed | Counter | Number of changed rows flushed to a CVR | |
ivm.advance-time | Histogram | s | Time to advance IVM queries in response to a single change |
ivm.conflict-rows-deleted | Counter | Rows deleted because they conflicted with an added row | |
query.transformations | Counter | Number of query transformations performed | |
query.transformation-time | Histogram | s | Time to transform custom queries via API server |
query.transformation-hash-changes | Counter | Times a query transformation hash changed | |
query.transformation-no-ops | Counter | Times a query transformation was a no-op |
zero.mutation
| Metric | Type | Unit | Description |
|---|---|---|---|
crud | Counter | Number of CRUD mutations processed | |
custom | Counter | Number of custom mutations processed | |
pushes | Counter | Number of pushes processed |
